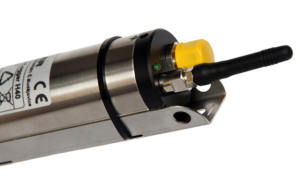

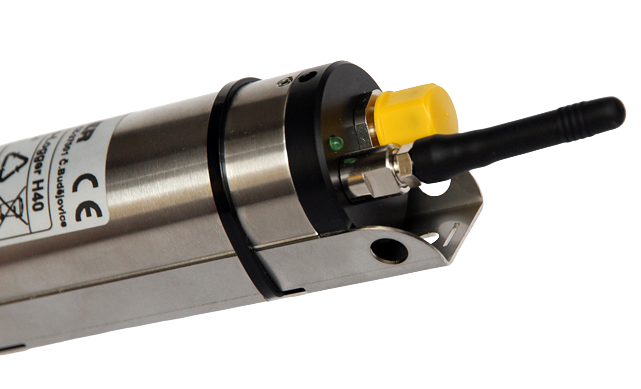

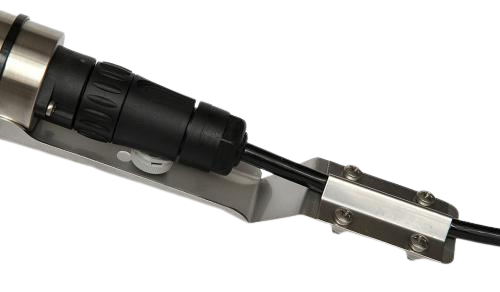

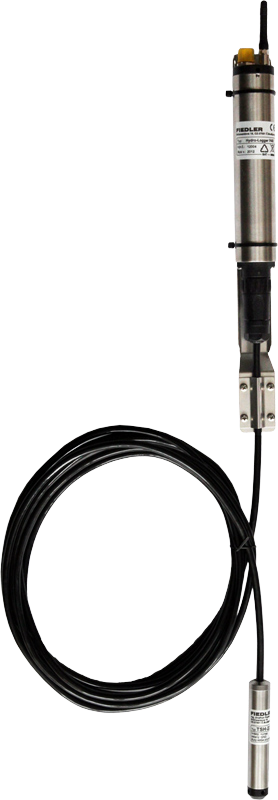

The TSH22 hydrostatic level sensor is most commonly connected to the H40 data logger. The hydrostatic sensor is powered by the H40. The level sensor assembly is designed to monitor water level and temperature in wells, sumps, tanks, and open watercourses. The measuring system is available in a basic version without data transmission (data logger function) or in a version with a built-in GSM/GPRS+SMS communication module for transmitting data to a database on a server (telemetry station function, GSM/GPRS data logger).
Water level meters are supplied as standard with a range of 0 to 7 m of water column (7 m w.c.). Other ranges—2 m, 5 m, 7 m, and 10 m—are available upon request. For water level fluctuations greater than 10 m of water column, water level sensors with ranges of 20 m, 40 m, 100 m, and 200 m of water column (more expensive models from BD Sensors s.r.o.).
