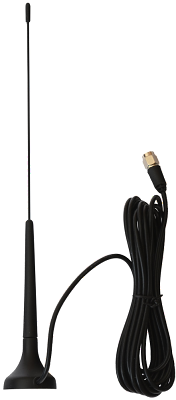

Omnidirectional magnetic GSM antenna 3 dBi

The antenna is designed for signal reception / transmission in GSM (2G) technologies in the 900/1800 MHz operating bands

The built-in magnet allows easy and quick installation of the antenna on metal surfaces. The antenna includes a 3 m cable terminated with an SMA connector.

This antenna is standardly included in the basic accessories of telemetry stations located in the ARIA32 and SCHNEIDER cabinets.

Technical parameters

Gain: 3 dBi

Cable: 3 m

Connector: SMA

Technology: GSM

Mounting method: magnetic

Polarization: linear

Impedance: 50 Ω

VSWR: <1.8: 1

Beam angle: H 360 ° E 30 °

Operating temperature: -30 °C to + 80 °C

Design: external

Dimensions: 232 x 30 mm

Weight: 52 g
